Choosing the right overhead crane for a workshop is a critical decision for any industrial facility. Among the many factors to consider, load capacity stands out as the most crucial. Selecting an overhead crane with an appropriate load capacity ensures not only operational efficiency but also safety, longevity of equipment, and cost-effectiveness. In this article, we will explore the principles, methods, and best practices for determining the correct load capacity for workshop overhead cranes.
Understanding Load Capacity
Load capacity refers to the maximum weight that a crane can safely lift under specified conditions. For workshop overhead cranes, this value is expressed in tons and can range from a few tons for light-duty operations to over 50 tons for heavy-duty industrial workshops. The load capacity affects nearly all aspects of crane design, including:
-
Beam strength and girder type (single or double girder)
-
Motor power and braking systems
-
Wire rope diameter or chain strength
-
Hoist type and speed
-
Structural support requirements in the workshop
Using a crane with insufficient load capacity can result in accidents, premature wear, and even structural failure. Conversely, overestimating the load capacity can lead to unnecessary capital expenditure and inefficiency. Therefore, accurate load capacity selection is vital.
Factors Influencing Load Capacity Selection
1. Maximum Load Weight
The first and most obvious factor is the weight of the heaviest load the crane will lift. This includes the weight of the material, container, or equipment being lifted, plus any rigging or attachments. For instance, if a workshop frequently lifts steel plates weighing 8 tons, the crane should have a rated capacity higher than 8 tons to ensure safety margins.
2. Load Distribution
The way the load is distributed affects the overhead crane capacity. If the weight is unevenly distributed, the crane experiences off-center loading, which reduces its effective lifting capacity. Workshop cranes that handle asymmetrical or irregular loads may require a higher rated capacity or specialized lifting attachments to ensure safe operation.
3. Lifting Frequency and Duty Cycle
The duty cycle refers to how often the crane lifts loads and the duration of operation. Overhead cranes are classified into work duty categories such as A3, A4, A5, etc., based on international standards. A crane with a high duty cycle (frequent, heavy lifting) will need a stronger structure and higher capacity rating than a crane lifting the same weight occasionally.
4. Future Expansion and Flexibility
Workshops often grow or diversify their operations. Choosing a crane with a slightly higher load capacity than currently needed allows flexibility for future tasks. This prevents the need for early replacement or upgrades as the workshop’s lifting requirements change.
5. Workshop Dimensions and Layout
The span, lifting height, and structural design of the workshop also influence load capacity. Longer spans or higher lifts require stronger cranes, even if the actual load is moderate. In addition, the crane’s travel speed and bridge span affect load dynamics, which may necessitate a higher capacity rating.
6. Safety Factors
Overhead crane design includes safety factors to accommodate unexpected stresses or miscalculations. Typical safety factors range from 1.25 to 1.5 times the maximum load. This ensures the crane can handle occasional overloads, dynamic forces, or environmental factors like wind in partially open workshops.
Methods for Determining Load Capacity
Selecting the right load capacity involves both calculation and consultation with eot crane manufacturers. The following steps are typically followed:
1. Identify Maximum Lifting Weight
Start by cataloging all loads the crane will lift. Include materials, containers, pallets, and any lifting attachments. Identify the heaviest item to establish the baseline capacity requirement.
2. Apply Safety Factor
Multiply the maximum load by a safety factor. For example, a 10-ton load with a 1.25 safety factor requires a crane rated for at least 12.5 tons.
3. Consider Load Distribution
If lifting uneven loads, calculate the center of gravity and apply additional margin. Consult manufacturer guidance for derating capacity in cases of off-center loading.
4. Assess Frequency and Duty Cycle
Select the appropriate work duty class based on lifting frequency. High-duty cranes lifting near maximum capacity multiple times a day may require a higher-rated crane than occasional lifts of the same weight.
5. Account for Lifting Height and Span
Higher lifts and longer spans introduce greater bending moments in the crane girder. Engineering calculations or manufacturer recommendations should adjust capacity to accommodate these structural factors.
6. Factor in Future Needs
Consider potential future tasks that may require heavier lifting. Adding 10–20% extra capacity is a common practice to provide flexibility.
Types of Overhead Cranes for Workshops
The choice of crane type influences how load capacity is implemented:
-
Single Girder Overhead Cranes: Typically used for lighter loads (up to 20 tons). These single girder cranes are cost-effective and easier to install but have limited lifting height.
-

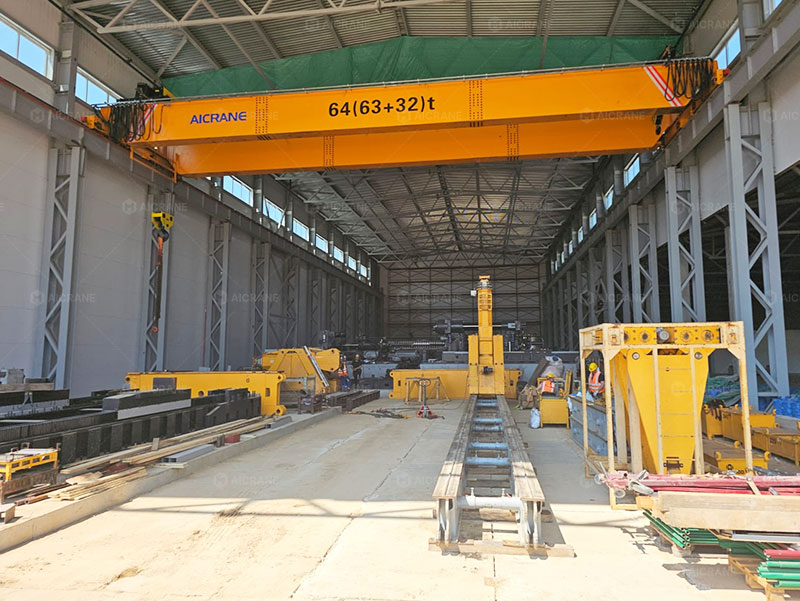

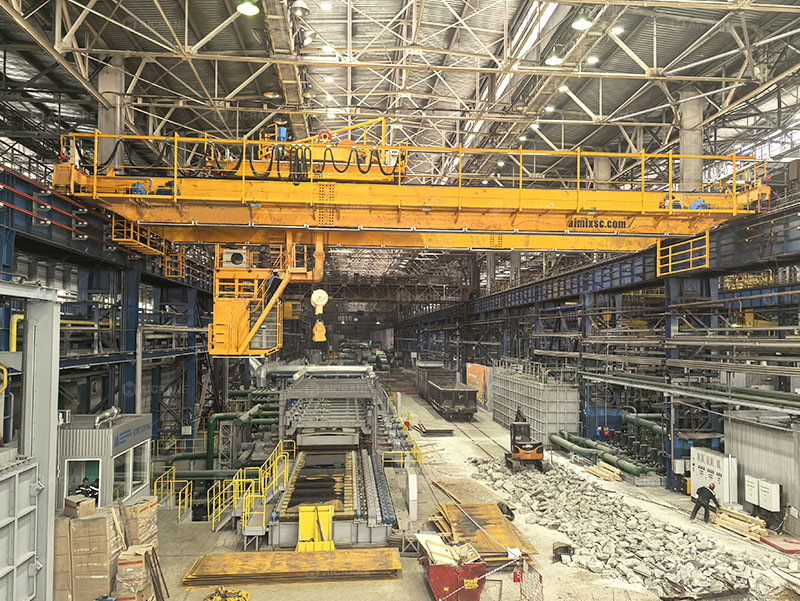

Double Girder Overhead Cranes: Used for heavier loads (20 tons and above). They provide higher lifting capacity and stability, suitable for workshops handling heavy machinery or steel processing.
-
European Standard Cranes (AQ/NMG): Designed with optimized steel structures and high lifting efficiency, suitable for workshops requiring precise handling and long-term durability.
Each type comes with specific load capacity ranges, and proper selection ensures optimal performance.
Importance of Manufacturer Consultation
Overhead crane manufacturers have extensive experience in load calculations, structural design, and duty rating selection. Consulting with a manufacturer can help:
-
Determine accurate load capacities for unique workshop layouts
-
Recommend appropriate safety factors and duty classes
-
Suggest lifting attachments and hoist types for irregular loads
-
Provide guidance on installation, maintenance, and operation
Manufacturers may also offer custom solutions to maximize efficiency and safety, including variable speed controls, anti-sway systems, and IoT-enabled monitoring for load tracking.
Consequences of Incorrect Load Capacity Selection
Choosing a crane with insufficient capacity can lead to:
-
Hoist or motor overload
-
Excessive wear on crane components
-
Structural failure of beams or rails
-
Increased risk of accidents and injuries
-
Production delays due to equipment downtime
On the other hand, overestimating load capacity unnecessarily increases costs and may require larger workshop structural reinforcements, making the crane less efficient and economical.
Conclusion
Load capacity selection for workshop overhead cranes is a multifaceted decision that impacts safety, efficiency, and long-term operational costs. By understanding the maximum load requirements, duty cycles, load distribution, and future expansion needs, workshop managers can select the optimal crane. Consulting with manufacturers and adhering to safety factors ensures that the chosen crane can handle all operational demands reliably. Ultimately, a carefully selected load capacity guarantees safe lifting, improves workflow, and maximizes the return on investment for workshop overhead cranes.
